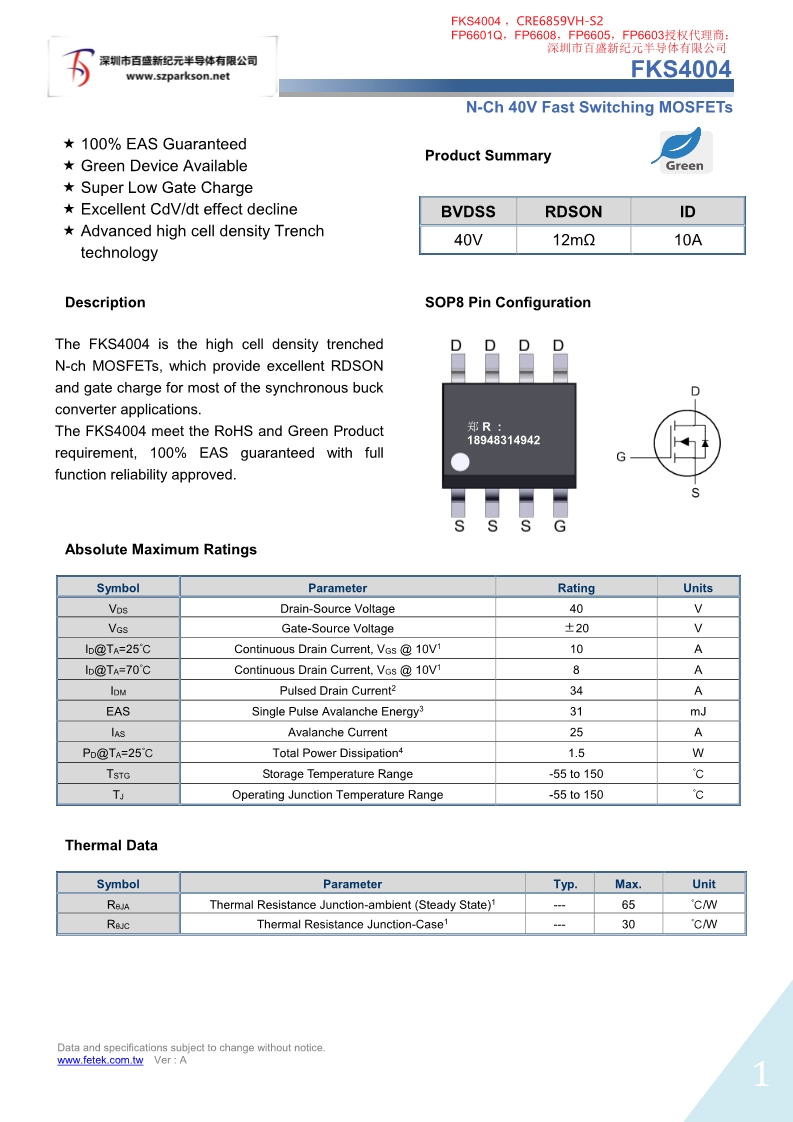

The FKS4004 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The FKS4004 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
| Symbol | Parameter | Rating | Units |
| V DS | Drain-Source Voltage | 40 | V |
| V GS | Gate-Sou r ce Voltage | ± 20 | V |
| I D @T A =25 ℃ | Continuous Drain Current, V GS @ 10V 1 | 10 | A |
| I D @T A =70 ℃ | Continuous Drain Current, V GS @ 10V 1 | 8 | A |
| I DM | Pulsed Drain Current 2 | 34 | A |
| EAS | Single Pulse Avalanche Energy 3 | 31 | mJ |
| I AS | Avalanche Current | 25 | A |
| P D @T A =25 ℃ | Total Power Dissipation 4 | 1.5 | W |
| T STG | Storage Temperature Range | -55 to 150 | ℃ |
| T J | Operating Junction Temperature Range | -55 to 150 | ℃ |
