PL2700智能限流IC，最大2A

   代理PL2700  USB限流开关IC

PL2700，可调限流0.5A-2A，
PL2702，可调限流1A-3A，带短路保护。   跟 PL2700脚位PIN对PIN

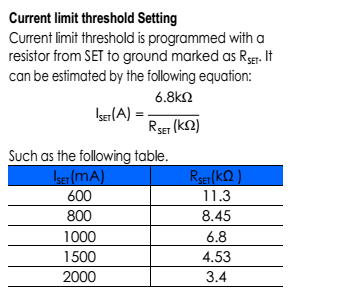

The PL2700 is a cost-effective, low voltage,singleP-MOSFET load switch,optimized for self-poweredand bus-powered Universal Serial Bus (USB)applications. This switch operates with inputsrangingfrom2.4Vto5.5V,makingitideal forboth3V and 5V s The switch's low RDS(ON),80mΩ ,meets USB voltage drop requirements. ThePL2700 is also protected from thermal overloadwhich limits power dissipation and junctiontemperatures. Current limit threshold isprogrammed with a resistor from SET to ground.The quiescent supply current is typically 15μA atswitch on state. At switch off state the supplycurrent decreases to less than 1μA.The PL2700 is5 package.

FEATURES
 Compliant to USBSpecifications
 Integrated 80mΩ Power MOSFET
 Low Supply Current15μA Typical at Switch On State1μA Typical at Switch Off State
 Wide InputVoltage Range:2.4V to 5.5V
 Fast Transient Response:<2μs
 Reverse Current Flow Blocking
 ThermalShutdownProtection
 Hot Plug-In Application (Soft-Start)
 Available in a 5-Pin SOT23-5Package
